Box Label: Box labels are the most commonly used type of labels in retail stores. They are usually printed on box-shaped adhesive paper and placed on the front of a product's box or packaging. Box labels contain product information such as the name, description, size or color, price, manufacturer information and barcodes. These labels are often used for quick identification by both customers and store personnel.
Barcode Label: Barcode labels are smaller than box labels and are generally made of plastic or vinyl. The barcode itself is encoded with information about a product which can be read by special scanners at retail checkouts. Barcodes also provide retailers with inventory control and they can be used to quickly identify price changes or discounts that have been applied to products.
You can generate and print shelf labels from your MicroSale system.
- Print your own shelf labels with or without barcodes or QR codes.
- Customized to print nutritional facts – optional
- Fully customizable to different types and sizes of labels
- Fully integrated with the Inventory and Receiving modules to generate labels as new products are added or as prices change.
Shelf Labels
MicroSale can also generate shelf labels for products in a fraction of the time it would take to manually label each item. With custom tags that include useful information such as product name, price, date & time stamp, expiration date, nutritional facts, etc., customers can easily find the items they need without having to search through shelves or ask for help.
Label Options
Sticky Label Printer
Printed sticker labels can help you keep orders organized and improve overall service. Whether you’re labeling multiple items to ensure a customer receives their complete order, or marking a container with complete order specifications, peel-and-stick labels are essential to order management.
- Perfect for delivery and curbside service–Place a sticker label on product containers to distinguish a customer’s order, whether it’s for pick up or delivery
- Reduce mix-ups–Ensure every order is delivered to the right person with proper labeling
- Guarantee accuracy–Include order details and modifiers right on the label
To accommodate a variety of packaging, peel-and-stick labels come in a variety of sizes, including 40MM, 58MM, 80MM.
Guide to Setting Up and Using Price Embedded Barcodes in MicroSale
Price Embedded Barcodes are barcodes that have the menu item's price encoded within them. This feature is commonly used in retail, grocery, and deli environments where non-integrated scales are utilized to generate menu item labels.
To set up Price Embedded Barcodes in MicroSale, you'll need to modify the Function.ini file, which can be found in the "INI Files" subdirectory of the MicroSale folder.
Below are four examples of how to configure the Function.ini file for different types of price-embedded barcode labels:
In the Function.ini file, input the following settings:
[Bar Codes]
Remove Check Digit=Yes
Check Digit Length=1
Type 2 Bar Code Price Position=7
Bar Code Length=6
Add Check Digit=
Type 2 Barcode Length=5
For this type of label, use the following settings:
[Bar Codes]
Remove Check Digit=Yes
Check Digit Length=1
Type 2 Bar Code Price Position=8
Bar Code Length=6
Add Check Digit=
Type 2 Barcode Length=5
For this example, input these settings:
[Bar Codes]
Remove Check Digit=Yes
Check Digit Length=1
Type 2 Bar Code Price Position=9
Bar Code Length=6
Add Check Digit=
Type 2 Barcode Length=5
For this label, use the following configuration:
[Bar Codes]
Remove Check Digit=Yes
Check Digit Length=1
Type 2 Bar Code Price Position=8
Bar Code Length=5
Add Check Digit=
Type 2 Barcode Length=5
Please note: this function is only compatible with Zebra printers or the SNBC LP540. It will not work with the SNBC LP580 printer.
Step 1: Install the Label/Barcode Printer
First, install the Label/barcode printer in Windows using the drivers provided by the vendor.
Step 2: Assign the Printer in MicroSale
Go to Managers Menu > Register setup > Terminal Configuration > Printer Setup > Attached Devices Setup > Label Printer/Ticket Printer.
Step 3: Create/Edit the “ZebraBarCode.dat” File
This file can be found in the “Dat File List” folder or can be created using notepad. The file should contain the following information:
N
OD
q406
B350,200,2,3,3,6,160,C,
A350,260,2,3,1,2,N,
1A350,260,2,3,1,2,N,
P1
The “B” line represents the Barcode and the “160” controls the size.
To print a shelf label, follow these steps:
- Go to Managers Menu > Select Menu Maintenance > Select Menu Item and Pricing > Select Menu Item > Touch Search By Labels.
- Touch "Find Bar Code Label".
- Enter the number of labels required.
With these steps, you can effectively set up and use Price Embedded Barcodes in MicroSale, streamlining your menu labeling process.
Example A:
Function.Ini for this Label:
[Bar Codes]
Remove Check Digit=Yes
Check Digit Length=1
Type 2 Bar Code Price Position=7
Bar Code Length=6
Add Check Digit=
Type 2 Barcode Length=5
Example B:
Function.Ini for this Label:
[Bar Codes]
Remove Check Digit=Yes
Check Digit Length=1
Type 2 Bar Code Price Position=8
Bar Code Length=6
Add Check Digit=
Type 2 Barcode Length=5
Example C:
Function.Ini for this Label:
[Bar Codes]
Remove Check Digit=Yes
Check Digit Length=1
Type 2 Bar Code Price Position=9
Bar Code Length=6
Add Check Digit=
Type 2 Barcode Length=5
Example D:
[Bar Codes]
Remove Check Digit=Yes
Check Digit Length=1
Type 2 Bar Code Price Position=8
Bar Code Length=5
Add Check Digit=
Type 2 Barcode Length=5
Creating Bar Code Shelf Labels
Please note: this function only works with Zebra printers or the SNBC LP540. It cannot work with the SNBC LP580 printer.
First you will need to Install the Label/barcode printer in Windows using the vendor provided drivers.
Assign the printer in MicroSale in Managers Menuà Register setupà terminal ConfigurationàPrinter SetupàAttached Devices Setupà Label Printer/Ticket Printer.
Next, Create/edit the “ZebraBarCode.dat” file. It can be found in the “Dat File List” folder or can be created using notepad. The file should contain the following information:
The “B” line is the Barcode and the “160” is what I think controls the size.
.
N
OD
q406
B350,200,2,3,3,6,160,C,
A350,260,2,3,1,2,N,
1A350,260,2,3,1,2,N,
P1
.
Printing a Shelf Label:
Go to Managers Menuà Select Menu MaintenanceàSelect Menu Item and Pricingà Select Menu Item àTouch Search By Labels
Touch Find Bar Code Label
Enter Number of Labels Required
Generates shelf labels for menu items. Allows you to search for menu items with an assigned correlating barcode number. Only supported with Zebra printers and the SNBC LP540
Labels and Barcodes
Label Printing for Menu Items
Enables label printing for menu items, which can be set to print for specific order types (Go, Here, Phone Orders, All Orders) and/or specific categories.
To set up a label printer, install it in Windows using the manufacturer-provided drivers. Once installed, select it in MicroSale under Managers Menu > Register setup > Printer/ Devices Setup > Attached Devices Setup. This can enhance order organization and clarity.
This option turns on label printing for menu items. This option works in conjunction with the option to "Select Order Type that prints labels", which can be set to Go, Here, Phone Orders, All Orders. Also, "Select Categories that print labels"
To setup a label printer you will first want to install it in Windows using the manufacturer provided drivers. Once installed in windows it can be selected in MicroSale by going to Managers Menu--> Register setup--> Printer/ Devices Setup-->Attached Devices Setup and selecting the printer from the drop-down field "Label Printer/ Ticket Printer"
| Select order type that Print Labels | sets what type of orders labels are printed for. I.e. phone orders, to go, all. |
Select Order Types/Categories for Label Printing
These options let you specify which order types and categories are eligible for label printing. This allows you to focus label printing where it's most needed in your operation.
Label Printing
Create unique bar code labels for your retail items using MicroSale's free generator tool. You can create type 1, 2 or 3 bar codes using any Zebra printer or the SNBC LP540. (Note: this feature does NOT work with the SNBC LP580!)
To create custom labels, you need to have unique codes (UPC numbers, SKU numbers) assigned to the menu items. These numbers are typically 8-12 digit codes. MicroSale can create a barcode to stick on your products based on the numbering system you have set up.
- Install the label/bar code printer in Windows using the drivers provided with the printer. You can also download the appropriate drivers via the internet

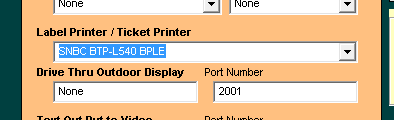

- Assign the printer in MicroSale
-
Managers Menu > Register setup > terminal Configuration > Printer Setup > Attached Devices Setup > Label Printer/Ticket Printer.
-
-
- Create/edit the “ZebraBarCode.dat” file. It can be found in the “Dat File List” folder or can be created using notepad. The file should contain the following information: (you can copy/paste the following, or use the attached .dat file connected to this article).
.
N
OD
q406
B350,200,2,3,3,6,160,C,
A350,260,2,3,1,2,N,
1A350,260,2,3,1,2,N,
P1
.
- After the dat file is created or edited, place the dat file in the "Dat Files" folder, if it is not already in the folder.

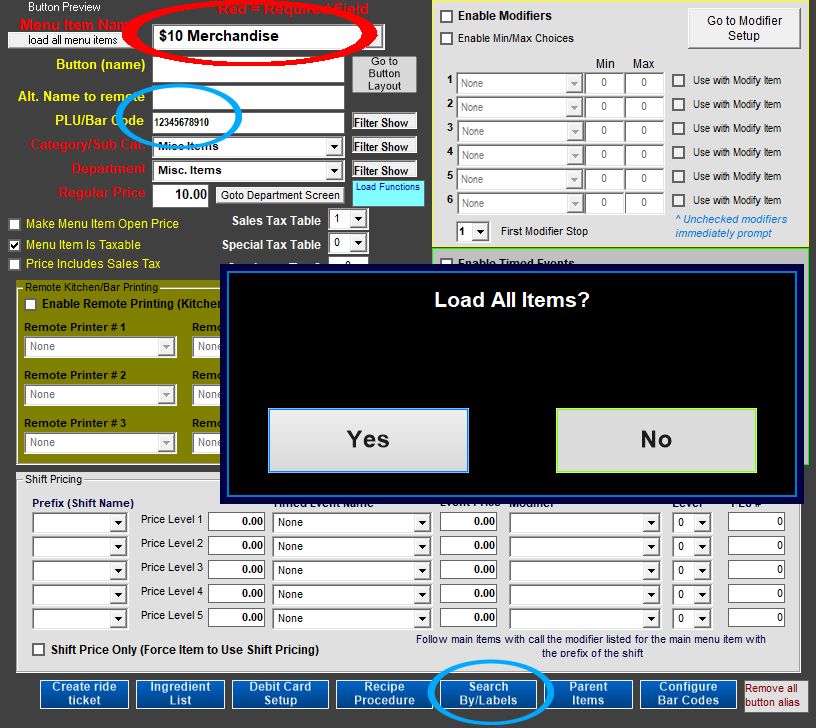

- Launch MicroSale. Go to Managers Menu > Select Menu Maintenance > Select Menu Item and Pricing > Select a Menu Item. Please note that this document assumes you already have bar code numbers entered. If you don't, please add the bar code numbers in the PLU/Bar Code field before moving on to Step #6.
- After your menu item is populated on the screen, select Search By/Labels. It will prompt you to "Load All Items"; Select NO to only populate the menu item you have selected. Select YES, to populate all menu items available.
- Select Print BarCode Label
- Enter the number of labels required
- Exit when completed
[[[ UNDER CONSTRUCTION ]]]
Barcode Options
Forcing scans to prompt quantity
Every time that you scan a barcode, it will prompt a “quantity” value.
